The Socal Honda Build
Tell us about your Project, Were you at in tyour build. Post Pictures etc.
Users browsing this topic: None
Post new topic Reply to topic Printer Friendly Page

1 2
>
View previous topic :: View next topic
Author Message
1963BAJA
Recruit
Recruit

1963BAJA

Offline

Joined: Oct 22, 2016
Posts: 20
Location: Escondido CA
Karma: 0

Post Post subject: The Socal Honda Build
Posted: Sat Oct 22, 2016 04:47 PM
Reply with quote

I bought this 1963 bug about 2 years ago (december 2014) sight unseen. Drove 2 hours away to go pick it up. Was not disappointed by the quality of the cage work the guy had done to the car and it was the perfect foundation for my project.

[img]https://drive.google.com/open?id=0BwU1H6ZfQmc5M1RoY1dYdjNMYVk[/img]

[img]https://drive.google.com/open?id=0BwU1H6ZfQmc5d1V0a1RtbFJtTUE[/img]

Now i never realized how off that cage was.. i ended up cutting out some of the tubing around where the seats went because the door bars were too narrow even for narrow seats and the harness bar was too far forward to give myself enough leg room.

It also had a bone stock link pin front end on it. First to go was the stock front end and swapped it out to an adjustable widened link pin front end i had from my first buggy.

[img]https://drive.google.com/open?id=0BwU1H6ZfQmc5U3RWdEMwSWt2bTQ[/img]

[img]https://drive.google.com/open?id=0BwU1H6ZfQmc5V1dMNWJLemJHTVE[/img]

[img]https://drive.google.com/open?id=0BwU1H6ZfQmc5TG9NQzBEUFc5aDg[/img]

And thats how it sat for quite some time. Until roughly 4 months ago i was able to finally put some money into it.


Last edited by 1963BAJA on Sat Oct 22, 2016 04:50 PM; edited 1 times in total
Back to top
View user's profile
1963BAJA
Recruit
Recruit

1963BAJA

Offline

Joined: Oct 22, 2016
Posts: 20
Location: Escondido CA
Karma: 0

Post Post subject: The Socal Honda Build
Posted: Sat Oct 22, 2016 05:25 PM
Reply with quote

Now if I could get my pictures to load in that would be great

Back to top
View user's profile
Azdrtdog
Sergeant
Sergeant

Azdrtdog

Offline

Joined: Apr 23, 2015
Posts: 310
Location: Glendale az
Karma: +3

Post Post subject: The Socal Honda Build
Posted: Sun Oct 23, 2016 04:01 AM
Reply with quote

Get a photo bucket account, copy paste the IMG link to photo


_________________
. A little grinding and some paint makes me the welder that I aint. 1TONHOE
Back to top
View user's profile
AzBaja
1st SGT.
1st SGT.

AzBaja

Offline

Joined: Mar 06, 2006
Posts: 4516
Location: Mesa, AZ
Officers (Dues)
Recruit
Karma: +16

Post Post subject: The Socal Honda Build
Posted: Sun Oct 23, 2016 06:58 AM
Reply with quote

They are on your google drive.

You need permission

Want in? Ask the owner for access, or switch to an account with permission. Learn more

as said above just use photo bucket account


_________________
There has been a hostile takeover by an extreme militant group with an unknown agenda, I have lost complete control of AzBaja.com..... ︻┳デ═一

AzBaja.com founding officer and CEO



www.scoutmagazine.com
www.IMRRO.com
Back to top
View user's profile Visit poster's website
1963BAJA
Recruit
Recruit

1963BAJA

Offline

Joined: Oct 22, 2016
Posts: 20
Location: Escondido CA
Karma: 0

Post Post subject: The Socal Honda Build
Posted: Mon Jun 19, 2017 07:41 PM
Reply with quote

I finally got around to getting my old photobucket account back and got some of my pictures uploaded so hopefully these links work

[img][/img]

Back to top
View user's profile
1963BAJA
Recruit
Recruit

1963BAJA

Offline

Joined: Oct 22, 2016
Posts: 20
Location: Escondido CA
Karma: 0

Post Post subject: The Socal Honda Build
Posted: Mon Jun 19, 2017 07:47 PM
Reply with quote

as you can see i had a good place to start but a ton of work had to be done.

stock ball joint front end
a cage that was too narrow to even fit seats in the car
absolutely nothing in the rear except a rigged caster to move the car on

[img][/img]

[img][/img]

[img][/img]

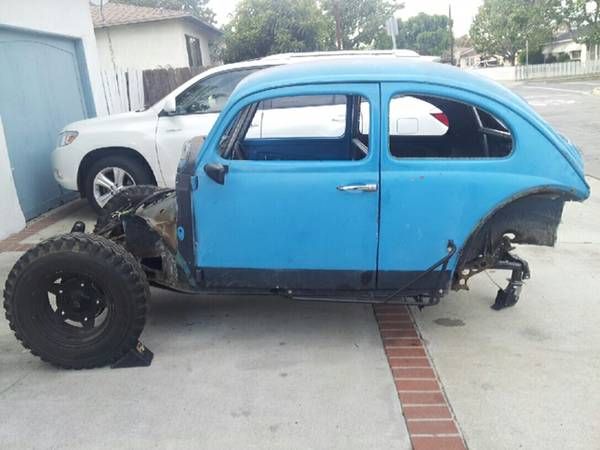

these are pictures from when i bought it 2 years ago and its come a long way since

Back to top
View user's profile
1963BAJA
Recruit
Recruit

1963BAJA

Offline

Joined: Oct 22, 2016
Posts: 20
Location: Escondido CA
Karma: 0

Post Post subject: The Socal Honda Build
Posted: Mon Jun 19, 2017 07:58 PM
Reply with quote

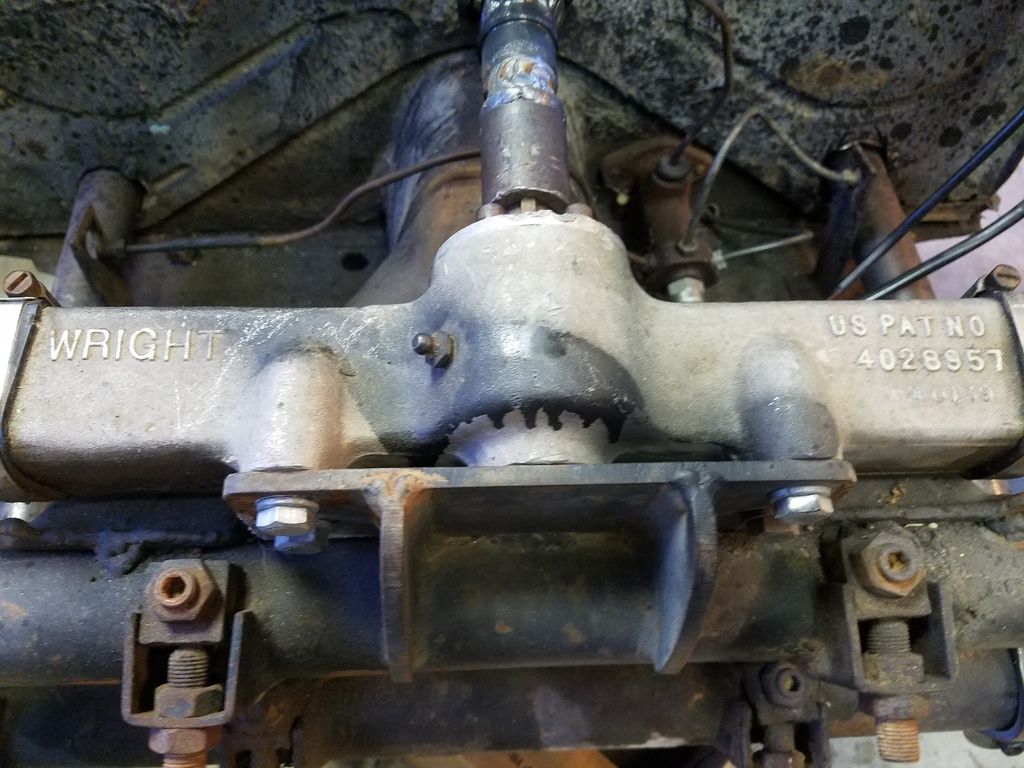

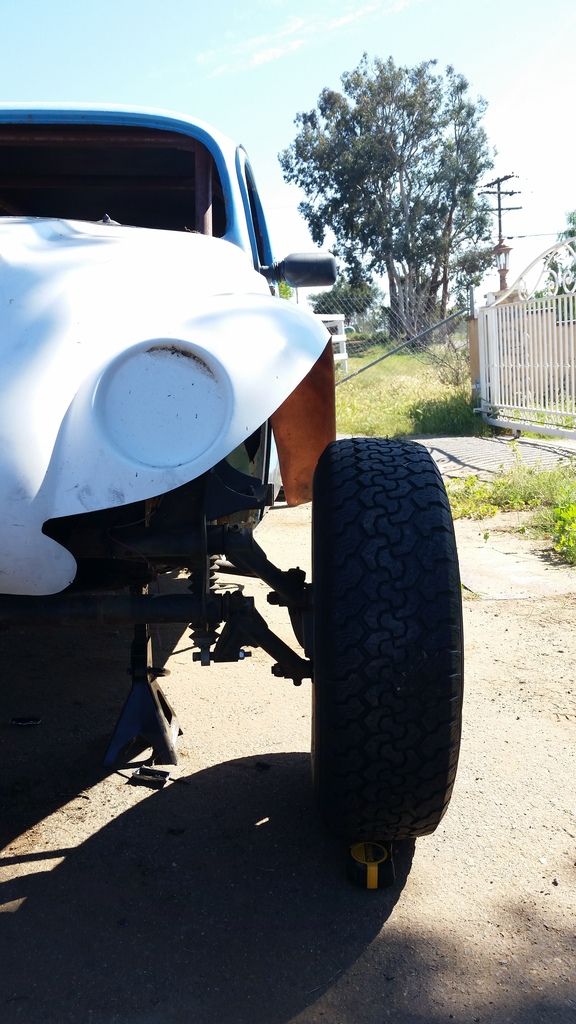

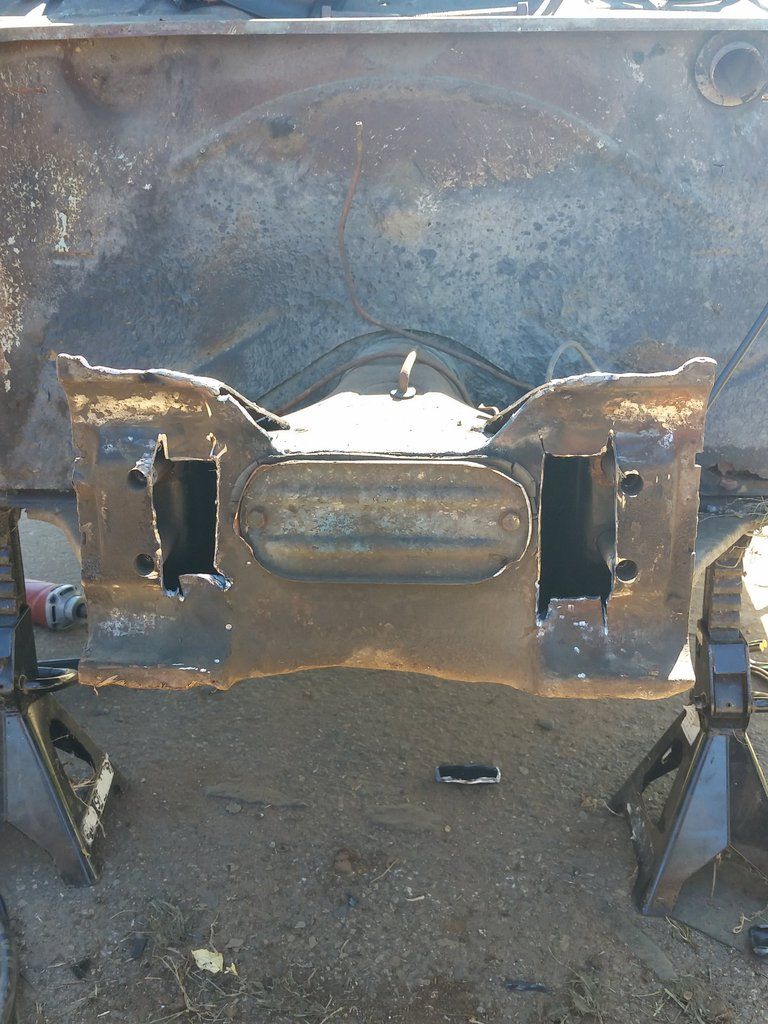

the first step was getting the widened beam i had laying around to fit the front of the car

[img][/img]

in order to get it to fit i had to clearance out the front of the beam so 2 rectangles were cut into the front and i made 2 more cuts in the top to allow the steering gear to fit and allow the tie rods to have room to move

once it was mounted i realized how wide this car was going to be

[img][/img]

Back to top
View user's profile
1963BAJA
Recruit
Recruit

1963BAJA

Offline

Joined: Oct 22, 2016
Posts: 20
Location: Escondido CA
Karma: 0

Post Post subject: The Socal Honda Build
Posted: Wed Jun 21, 2017 04:49 PM
Reply with quote

This is how it sat for a very long time. I got it to that point roughly 2 years ago and i have now owned it for about 2 and a half years. In that time i moved 2 different times to where i am currently staying where i managed to get myself half of a garage with a friend of mine. I was then able to begin working on it finally after letting the poor thing sit for so long. So last summer i was able to get some more progress started on it.

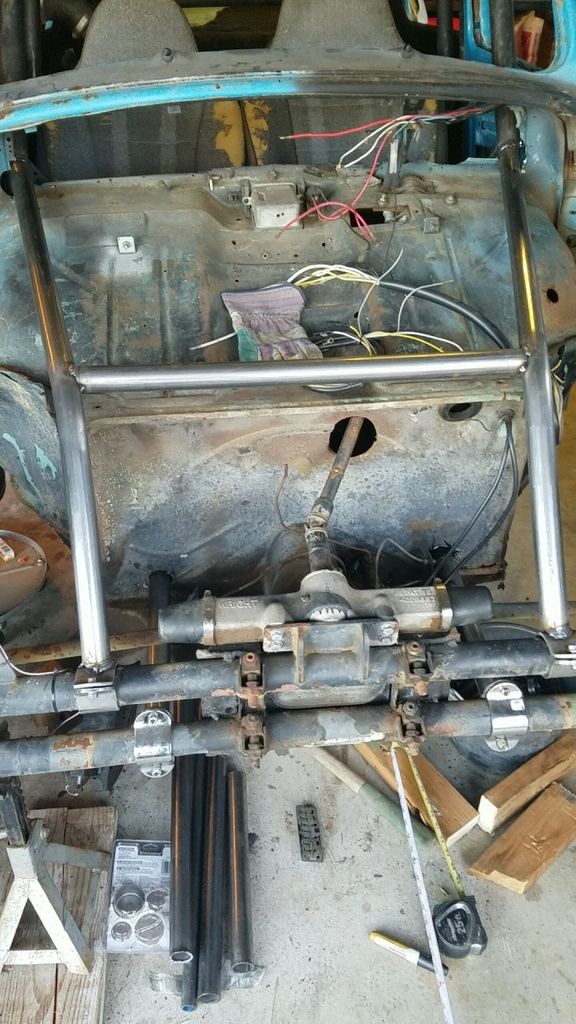

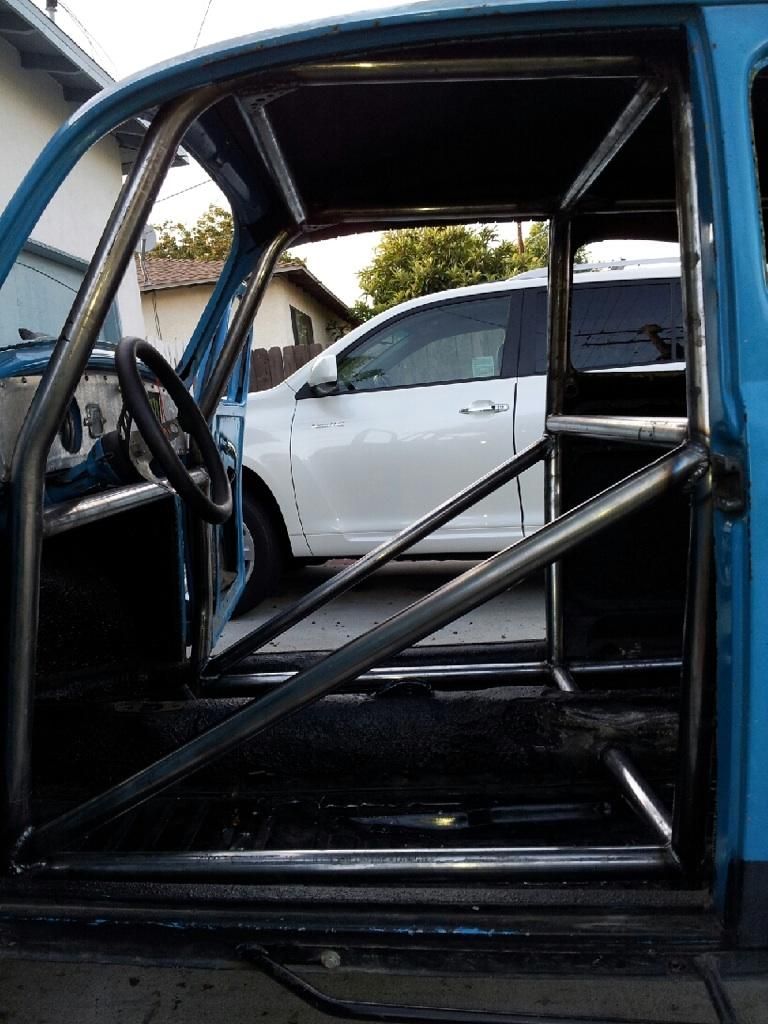

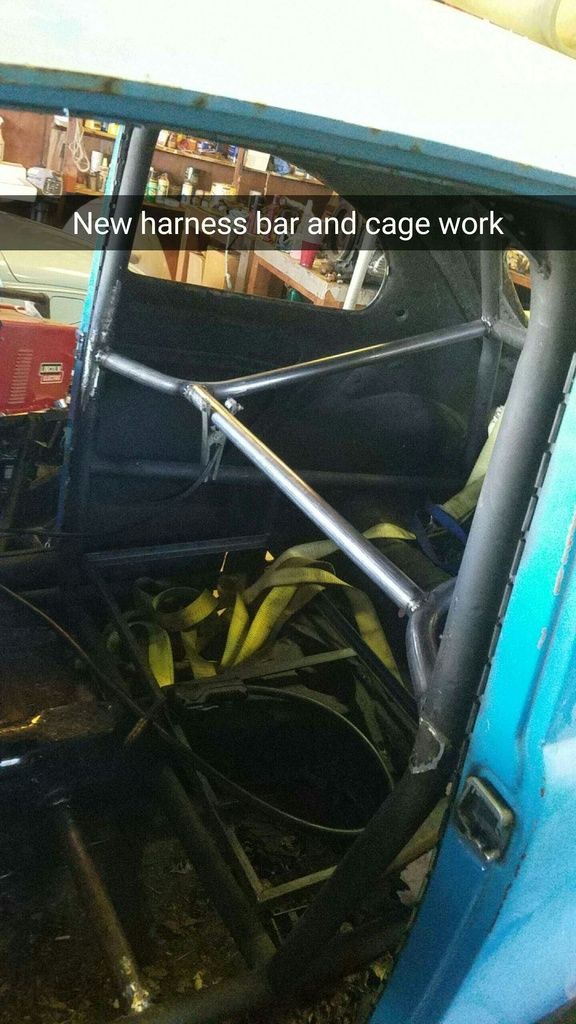

First on the list was to get my seats to fit properly so i cut out the bars that the other guy made to make room.

[img][/img]

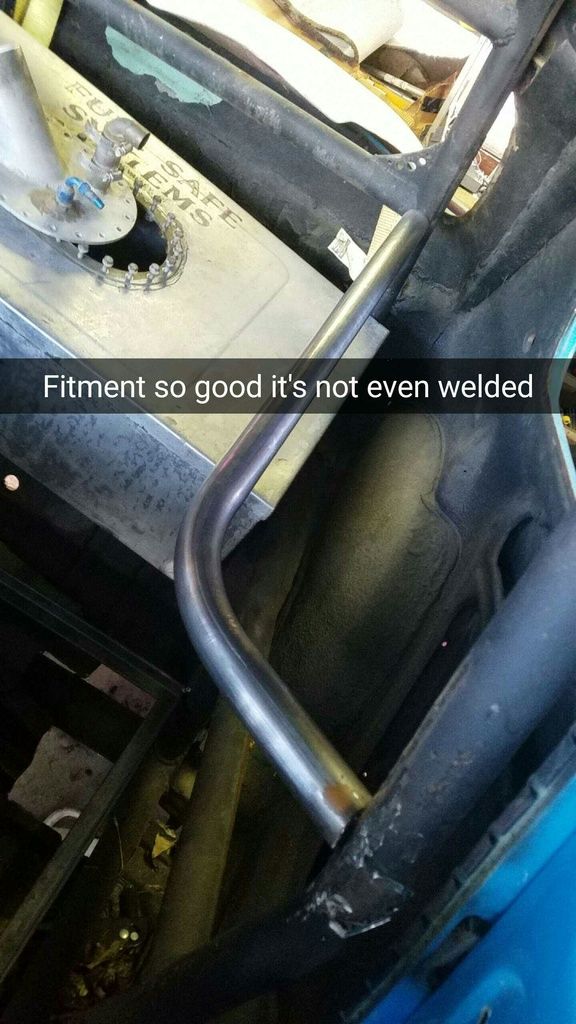

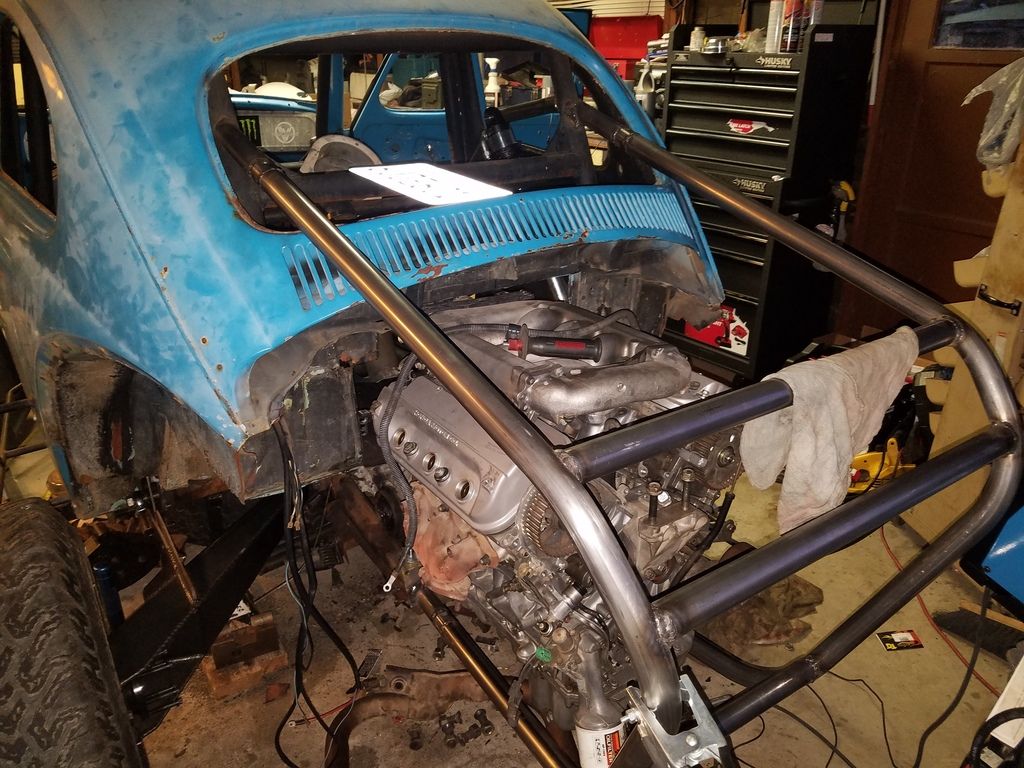

I then decided on this type of configuration for my rear cage work to support the harnesses as well provide room to bring the seats back because the original tube was way too far forward even for me and i'm only 5'8 on a good day

[img][/img]

Back to top
View user's profile
1963BAJA
Recruit
Recruit

1963BAJA

Offline

Joined: Oct 22, 2016
Posts: 20
Location: Escondido CA
Karma: 0

Post Post subject: The Socal Honda Build
Posted: Wed Jun 21, 2017 05:05 PM
Reply with quote

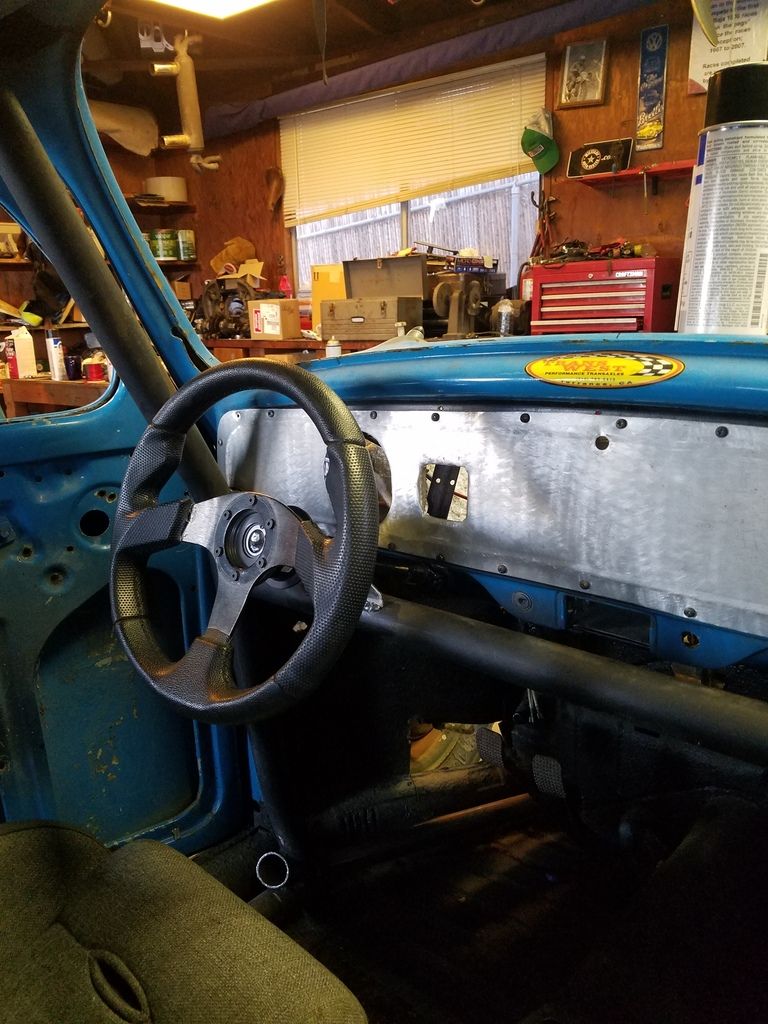

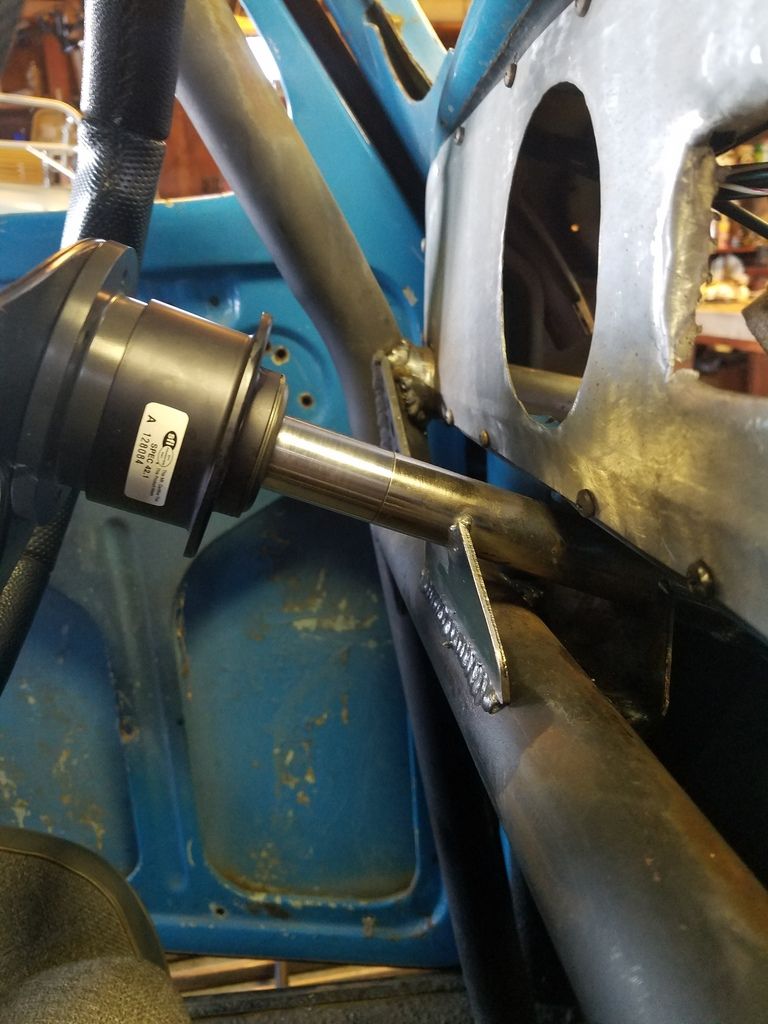

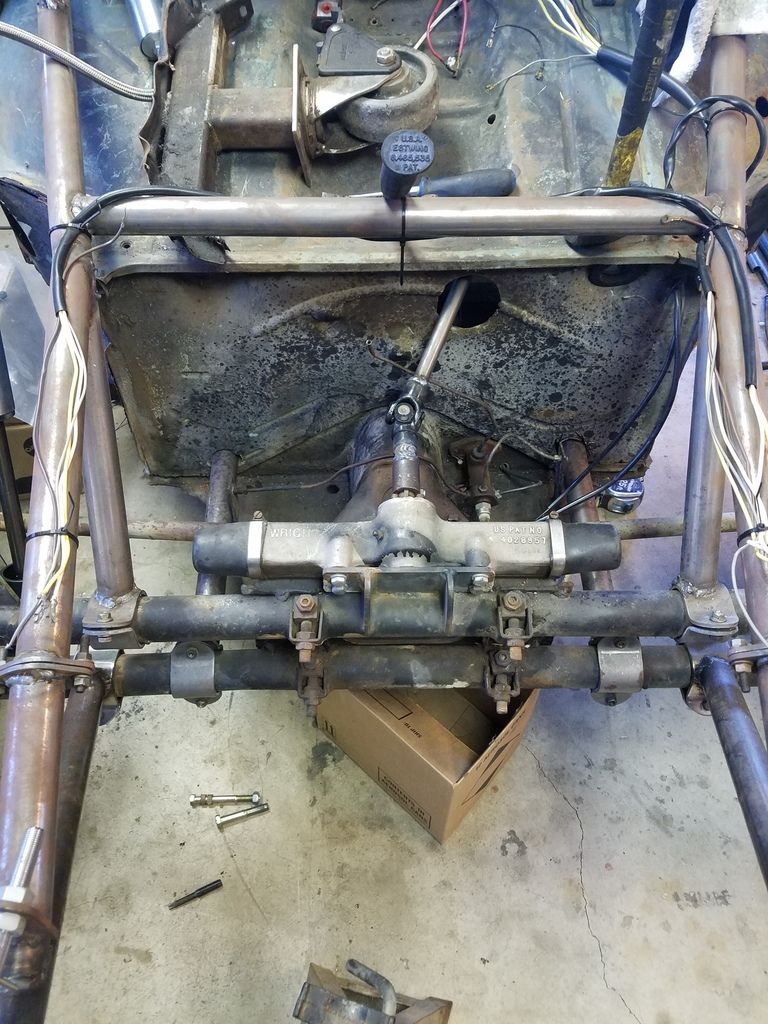

My next step was to get the steering figured out because it was a real pain to get this thing moved around for cleaning and whatever i needed when i didnt even have a steering wheel.

[img][/img]

[img][/img]

[img][/img]

Back to top
View user's profile
1963BAJA
Recruit
Recruit

1963BAJA

Offline

Joined: Oct 22, 2016
Posts: 20
Location: Escondido CA
Karma: 0

Post Post subject: The Socal Honda Build
Posted: Wed Jun 21, 2017 05:30 PM
Reply with quote

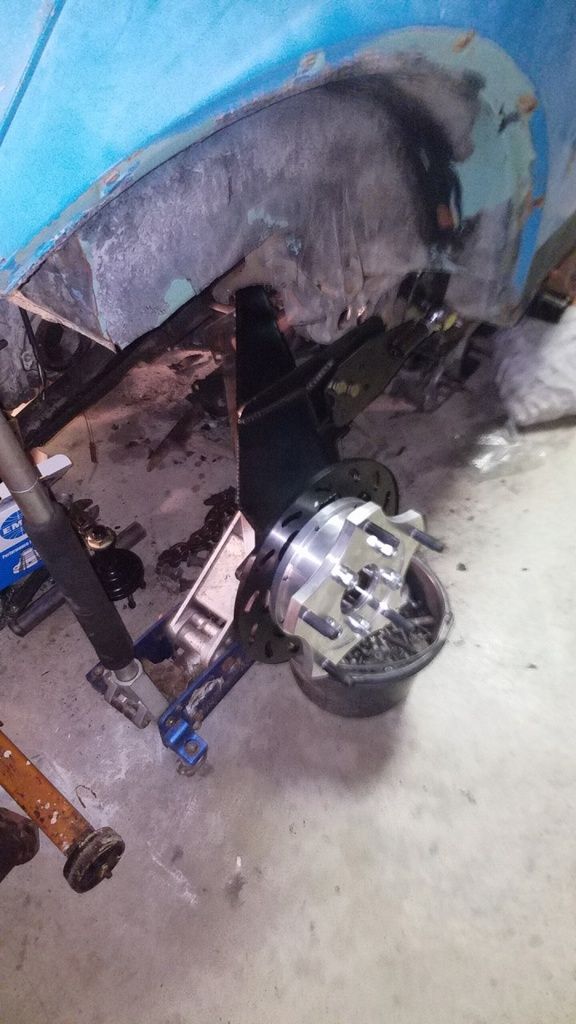

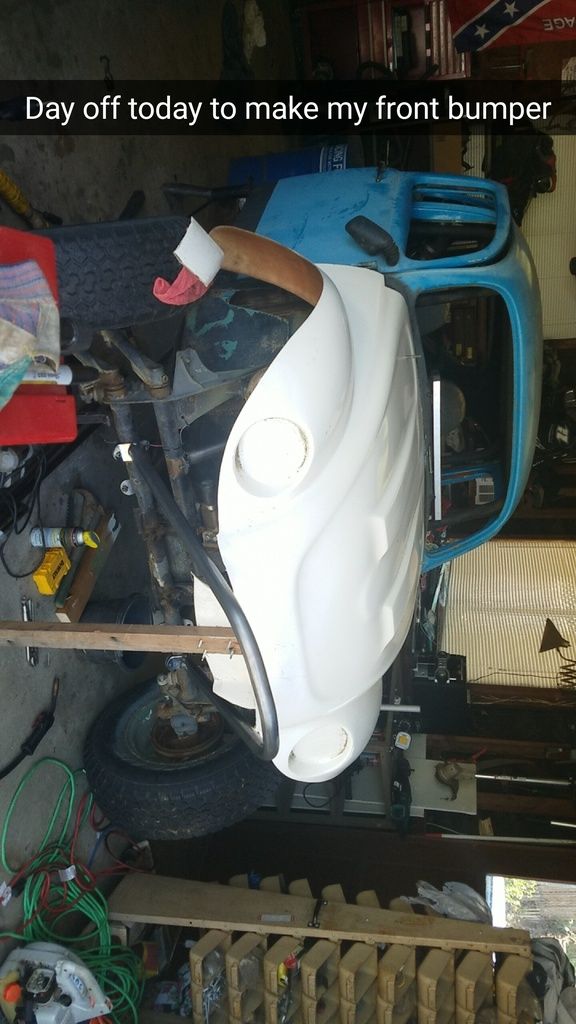

My next task was to run some tubes to the beam and make myself a front bumper to give myself a way to mount my hood to the car

[img][/img]

Here you can see that caster i had to use. Not the best thing ever and over time it ended up folding under and became useless but for the time it worked it sure was a life saver

[img][/img]

[img][/img]

Back to top
View user's profile
1963BAJA
Recruit
Recruit

1963BAJA

Offline

Joined: Oct 22, 2016
Posts: 20
Location: Escondido CA
Karma: 0

Post Post subject: The Socal Honda Build
Posted: Wed Jun 21, 2017 05:45 PM
Reply with quote

I then took some time away to put some money aside while i decided on a powerplant for this thing. I originally had a subaru 2.2 from a 96 impreza but i was missing some major components like the computer and harness and for whatever reason it was a really hard computer to find so i ended up selling the motor to someone for them to use as mockup.

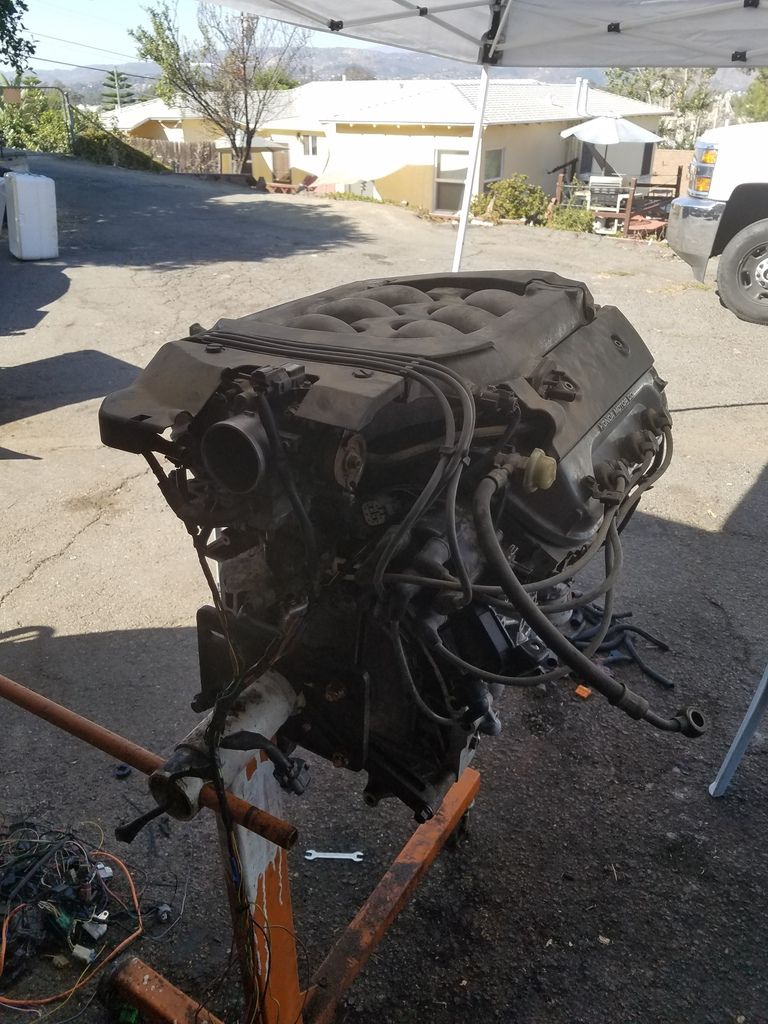

I next debated several different options for an engine. I first thought of an older D or B series honda motor however they rotate the wrong way to be used on a VW transmission and i didnt wanna flip the ring and pin around and potentially waste a transmission just because i wanted to save a few bucks on an engine. I then considered a K series honda motor but they are very expensive to buy until a friend of mine mentioned that J series motors sell for decent prices. So i found a complete donor car to use on craigslist and had a direction to go. A 97 acura 3.0cl was the donor car i found and it was perfect for me. Unfortunately the car was not running when i picked it up...

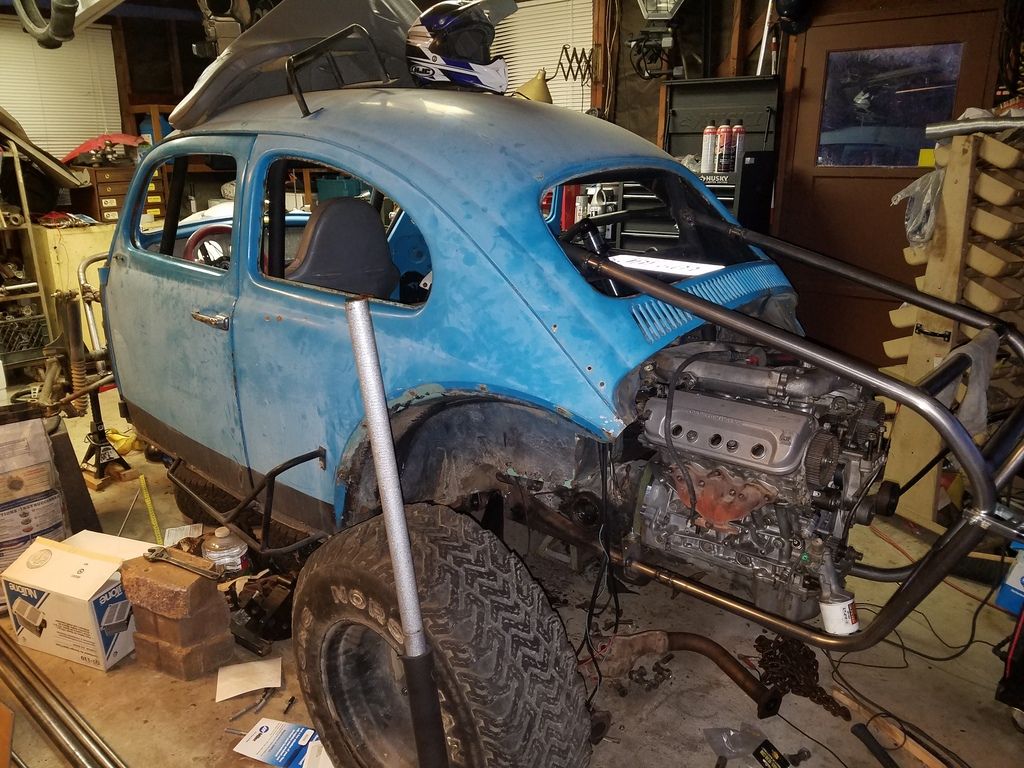

but after alot of work and cutting some of the front of the car out of my way i finally had my engine

[img][/img]

Back to top
View user's profile
1963BAJA
Recruit
Recruit

1963BAJA

Offline

Joined: Oct 22, 2016
Posts: 20
Location: Escondido CA
Karma: 0

Post Post subject: The Socal Honda Build
Posted: Wed Jun 21, 2017 06:21 PM
Reply with quote

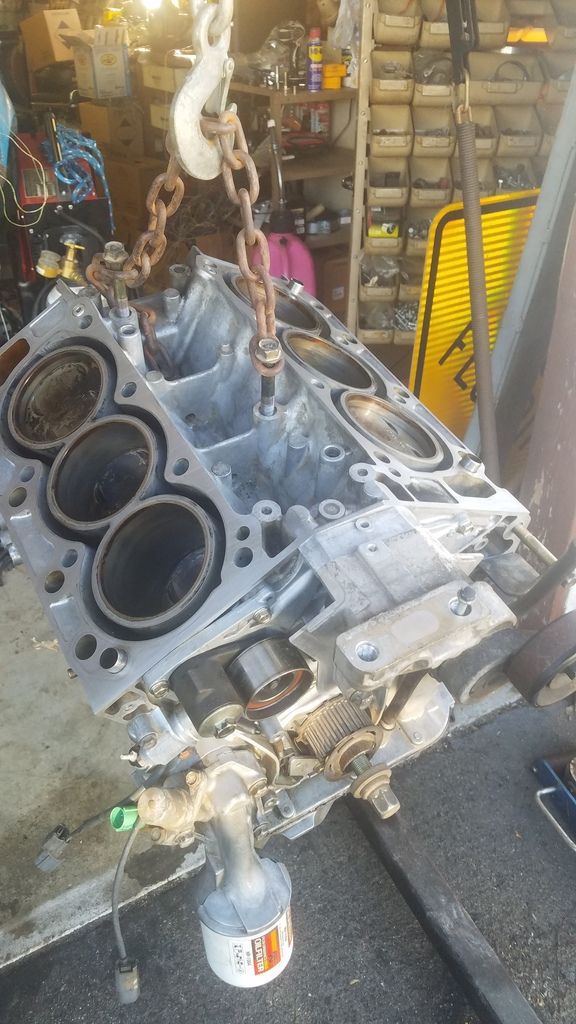

It didnt take long for me to figure out why it wasnt running when i got it. The guy let the timing belt go and thought he could just replace the belt and it would be fine. Well as it turns out he managed to just BARELY bend a valve on all 6 cylinders. There was only one small mark on one piston from the damage. So long story short it needed new heads and a timing belt but for an engine with 100k miles on it its in great shape. everything looked great while i had it apart

[img][/img]

And while i was at it i decided i would get rid of some of the extra emissions stuff i didnt need and get the harness redone for my needs

[img][/img]

Back to top
View user's profile
1963BAJA
Recruit
Recruit

1963BAJA

Offline

Joined: Oct 22, 2016
Posts: 20
Location: Escondido CA
Karma: 0

Post Post subject: The Socal Honda Build
Posted: Wed Jun 21, 2017 06:34 PM
Reply with quote

Then it was time to spend more money again so i could get the engine mounted

[img][/img]

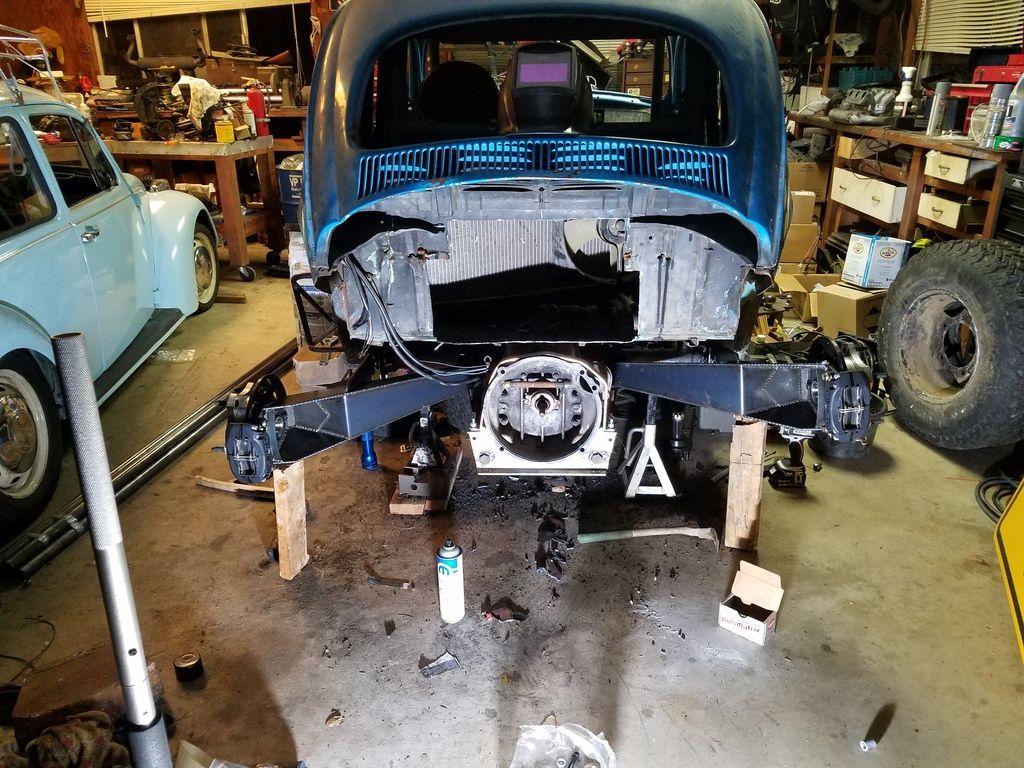

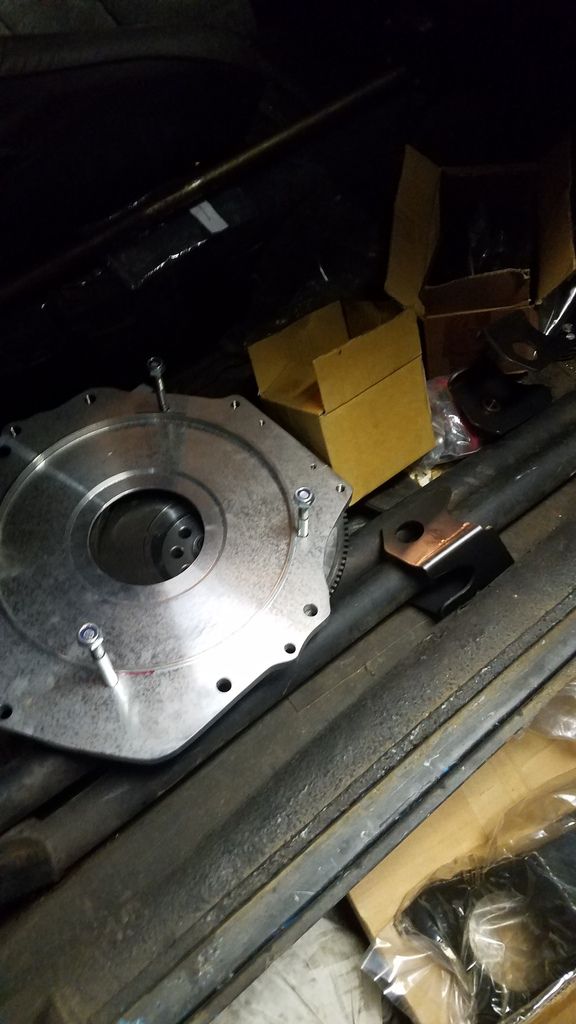

picked up the kennedy adapter to go to my 002 transmission. stock type clutch disc is gonna be held on with a stage 1 pressure plate. should be able to drive it reasonably with that setup at least thats what i've been told.

Back to top
View user's profile
1963BAJA
Recruit
Recruit

1963BAJA

Offline

Joined: Oct 22, 2016
Posts: 20
Location: Escondido CA
Karma: 0

Post Post subject: The Socal Honda Build
Posted: Wed Jun 21, 2017 06:43 PM
Reply with quote

next up was a combination of getting the transmission/engine and using some jigs to get my trailing arms mounted. since this car is a 63 i didnt have the luxury of already having a place to mount my trailing arms to.

[img][/img]

[img][/img]

[img][/img]

Back to top
View user's profile
1963BAJA
Recruit
Recruit

1963BAJA

Offline

Joined: Oct 22, 2016
Posts: 20
Location: Escondido CA
Karma: 0

Post Post subject: The Socal Honda Build
Posted: Wed Jun 21, 2017 06:57 PM
Reply with quote

next on the list was making a place to mount the engine to but i wanted to incorporate a rear bumper with this design as well and this is what i came up with

[img][/img]

[img][/img]

[img][/img]

Back to top
View user's profile

1 2
>
Post new topic Reply to topic Printer Friendly Page

 Topics   Replies   Author   Views   Last Post
Normal
No new posts Projects and Builds New father/son budget build
Cheapskate special
[ Go to pageGo to page: 1, 2 ]
26 Azdrtdog 10540 New father/son budget ...
 Fri Jun 16, 2017 10:26 PM
Dalton View latest post
No new posts New Members New to the forum. Hailing from Socal currently.. 1 1963BAJA 1803 New to the forum. Hail...
 Sun Oct 23, 2016 06:59 AM
AzBaja View latest post
No new posts Projects and Builds New Class 11 Build - PepeBlanco 4 pepeazul 4932 New Class 11 Build - P...
 Tue Mar 22, 2016 01:19 AM
MojaveRacer208 View latest post
No new posts Projects and Builds Carbon Footprint...aka Suburban Legend Baja Build
[ Go to pageGo to page: 1 ... 5, 6, 7 ]
101 SuburbanLegend 131133 Carbon Footprint...aka...
 Thu Oct 08, 2015 08:28 PM
AzBaja View latest post
No new posts Projects and Builds 1450Bug Build
[ Go to pageGo to page: 1 ... 3, 4, 5 ]
61 1450bug 51336 1450Bug Build
 Fri Jan 23, 2015 02:41 AM
Dalton View latest post
You cannot post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You cannot download files in this forum

Toggle Content Picture Box

Toggle Content Great things to Buy

Toggle Content Other Sites

Toggle Content Parts - For your Car

If you see Errors please E-mail Eric (AT) AzBaja.com X XX XXX
azbaja.com Webutation

eXTReMe Tracker
XXXX
The logos and trademarks used on this site are the property of their respective owners
We are not responsible for comments posted by our users, as they are the property of the poster. Any use, commercial or educational, requires written permission from the author.
Interactive software released under GNU GPL, Code Credits, Privacy Policy
